SSFT 2025 @ SRI International

Note

This lab took place at the Fourteenth Summer School on Formal Techniques at SRI International in May 2025.

Welcome to the Gillian lab at SSFT 2025!

This lab takes the Separation Logic and Compositional Symbolic Execution theory you've seen in the lectures, and re-contextualise it with a semi-automatic verification tool built with Gillian.

Installation instructions

Before you start, please install the following:

• Docker
• VSCode
• VSCode's 'Dev Containers' extension

Once that's done, follow these steps:

1. Clone the lab repository.

   git clone https://github.com/GillianPlatform/gillian-lab.git --branch SSFT25

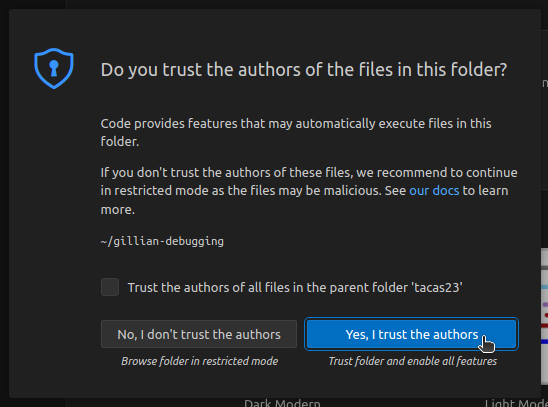

2. If necessary, select Yes, I trust the authors.

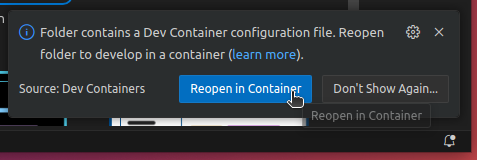

3. Launch the dev container by clicking "Reopen in Container" on the popup.

   • If you cannot find the popup, open the Command Palette (F1 or Ctrl+Shift+P by default) and select "Dev Containers: Open Folder in Container..." and select the gillian-lab folder.

4. Gillian's Docker image should then be automatically downloaded, and VSCode will use it for your development environment.

Lecture 1: Compositional Software Verification

Main slides • WISL slides

This lecture covers:

• Separation logic
• Specification and verification of sequential programs for mutating data structures
• Tools inspired by separation logic, based on compositional symbolic execution

Lab Session 1: An introduction to Gillian

These exercises are in the lab1 directory of the lab repository. They include list algorithms to demonstrate:

• Folding and unfolding predicates
• Applying proof tactics and lemmas
• Calling functions compositionally
• Loop invariants

If you have time, check out exercises A-D from the lab2 directory for some examples with different data structures.

Lecture 2: Compositional Symbolic Execution

This lecture covers:

• Theoretical foundations - Compositional Symbolic Execution (CSE) and bi-abduction
  • CSE for a simple C-like state
  • State-parametric CSE
  • Functional compositionality
• State combinators for CSE

Lab session 2: Further experience with Gillian

These exercises are in the lab1 directory of the lab repository. They include:

• Some fun, harder examples of data-structure algorithms
• List algorithms ported from the real-world Collections-C library
• Some harder iterative list algorithms

Feel free to tackle these in any order, and refer back to the Lab 1 exercises if you need a refresher.

Misc. lab notes

• The language server highlights compilation errors (and other unexpected problems) in red, and verification failures in blue.
• The debugger supports breakpoints! This can be handy when restarting the debugger after making changes to your code; assign breakpoints to the relevant lines and click the Continue button .
• If you get a SIGPIPE or "Broken pipe" error, try making a small change to your code and trying again.
  • Note from Nat: I have *absolutely no idea* why this happens. Even with a repro, it disappears if I try to track it down 🙃
• If Gillian seems stuck or unresponsive, or if the WISL language server fails to start, try opening the Command Palette with (F1 or Ctrl+Shift+P by default) and running the "Reload window" command.
